📊 Monitor AI Coding Agents with Grafana
AI coding agents are now a real line item in most engineering budgets. GitHub Copilot, Claude Code, OpenClaw, and the next thing your team installs all generate tokens, calls, latency, and cost — but very little of that is visible unless you wire it up. The Azure Managed Grafana team has now published a ready-made path to do exactly that, using OpenTelemetry, Application Insights, and a small set of curated dashboards.
This post walks through the architecture, the pieces you need to deploy, and the trade-offs worth knowing before you roll it out to a team.
Why centralise agent telemetry
Adoption of coding agents is the easy part. The harder questions show up after a few sprints:
- How much are we spending per model, per team, and per task?
- Who is using which agent, and which tools are being invoked?
- Where do sessions stall, error out, or quietly burn tokens?
- Can we audit prompts, tool calls, and model choices for compliance?
Local IDE telemetry answers none of these at an organisation level. You need a shared backend and a shared dashboard before any of it is actionable.

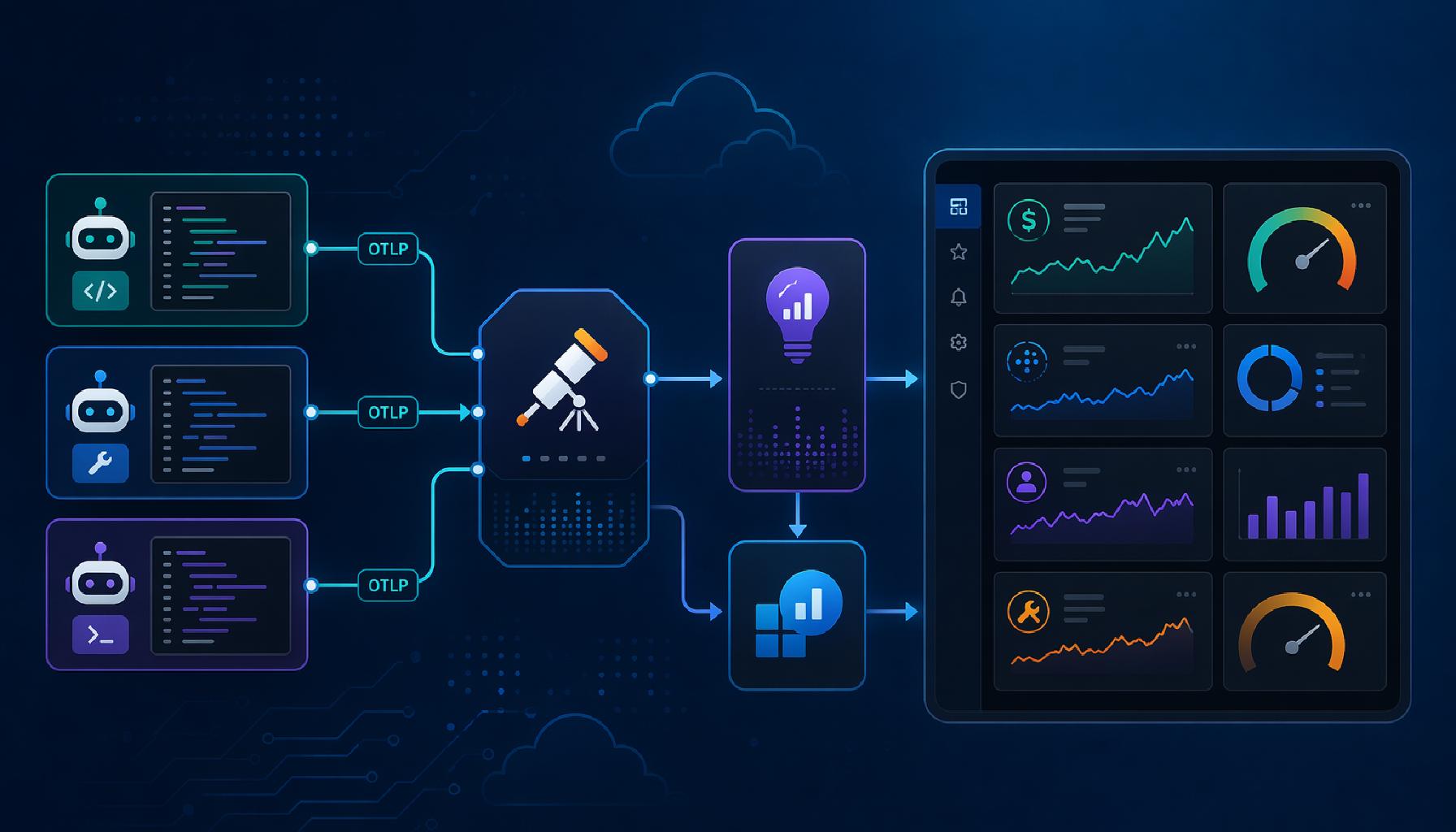

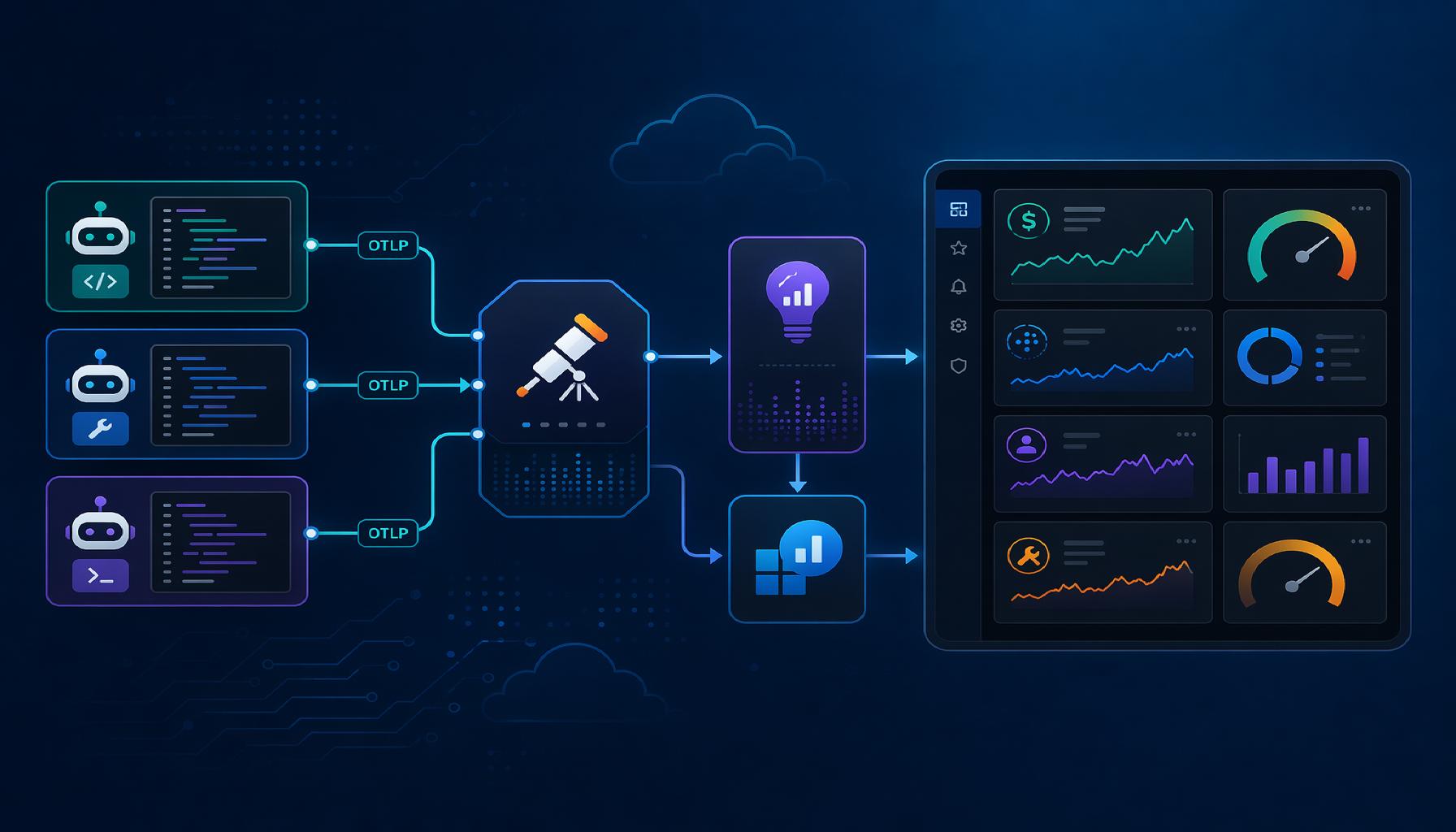

How the pipeline fits together
The official guidance keeps the moving parts intentionally small:
- Each coding agent emits OpenTelemetry traces, metrics, and logs to an OTLP endpoint.
- An OpenTelemetry Collector (the
contribdistribution) terminates OTLP and forwards everything to Application Insights using the Azure Monitor exporter. - Grafana queries Application Insights via the Azure Monitor data source and renders three purpose-built dashboards.
The collector and the Application Insights pipeline are one-time infrastructure. After that, onboarding a new agent is just a configuration change pointed at the same endpoint.
Azure Monitor also supports native OTLP ingestion as an alternative, which removes the collector hop. The dashboards still work because the data lands in the same Log Analytics tables — useful if you would rather not run and patch a collector yourself.
Prerequisites
Before you start, make sure you have:
- An Application Insights resource backed by a Log Analytics workspace.
- Docker (or any container runtime) for the collector, or a Kubernetes cluster if you prefer to host it there.
- Grafana 11.6 or later, with an Azure Monitor data source that can read the target Application Insights resource. Azure Managed Grafana is the zero-maintenance option here.
Treat the Application Insights connection string as a secret. Anyone with the string can write telemetry into your workspace and skew the cost panels.
Step 1: Run the OpenTelemetry Collector
The collector takes OTLP on HTTP and gRPC, then exports to Application Insights.
Save the following as otel-collector-config.yaml and replace the connection
string placeholders with values from your Application Insights resource:
receivers:
otlp:
protocols:
http:
endpoint: 0.0.0.0:4318
grpc:
endpoint: 0.0.0.0:4317
exporters:
azuremonitor:
connection_string: "InstrumentationKey=<YOUR-KEY>;IngestionEndpoint=https://<region>.in.applicationinsights.azure.com/;LiveEndpoint=https://<region>.livediagnostics.monitor.azure.com/"
service:
pipelines:
traces:
receivers: [otlp]
exporters: [azuremonitor]
metrics:
receivers: [otlp]
exporters: [azuremonitor]
logs:
receivers: [otlp]
exporters: [azuremonitor]
Run the collector with the contrib image, which already includes the Azure
Monitor exporter:
docker run -d --name otel-collector \
-p 4318:4318 -p 4317:4317 \
-v $(pwd)/otel-collector-config.yaml:/etc/otelcol-contrib/config.yaml \
otel/opentelemetry-collector-contrib:latest
For shared use, host the collector somewhere reachable by every agent (a small
container app, a Kubernetes deployment, or a per-host sidecar). The agents in
this guide all use OTLP/HTTP on port 4318.
Step 2: Point each agent at the collector
Each agent has its own switch, but the target is the same: the collector’s OTLP/HTTP endpoint.
GitHub Copilot (VS Code)
GitHub Copilot emits OpenTelemetry when configured in Visual Studio Code. Add
the following to settings.json:
{
"github.copilot.chat.otel.enabled": true,
"github.copilot.chat.otel.exporterType": "otlp-http",
"github.copilot.chat.otel.otlpEndpoint": "http://localhost:4318",
"github.copilot.chat.otel.captureContent": true
}
The Copilot dashboard surfaces operations, input and output tokens, chat sessions, tool calls, and per-model latency including P50 and P90 time to first token. That last metric is the one to watch when a model swap silently degrades the experience.
GitHub Copilot CLI
The GitHub Copilot CLI runs as a standalone terminal process and reads its
telemetry configuration from environment variables rather than settings.json.
Export these before launching the CLI, or add them to your shell profile:
export OTEL_EXPORTER_OTLP_ENDPOINT="http://localhost:4318"
export OTEL_EXPORTER_OTLP_PROTOCOL="http/protobuf"
export COPILOT_OTEL_ENABLED=true
export COPILOT_OTEL_CAPTURE_CONTENT=true
Setting OTEL_EXPORTER_OTLP_ENDPOINT alone is enough to turn telemetry on;
COPILOT_OTEL_ENABLED just makes the intent explicit. The CLI runtime only
speaks OTLP/HTTP — an otlp-grpc setting is silently downgraded to HTTP — so
keep it pointed at the collector’s 4318 endpoint.
COPILOT_OTEL_CAPTURE_CONTENT stores full prompts, responses, and tool
arguments, mirroring captureContent in the VS Code extension. The same
trade-off applies: great for auditability, risky for data classification. Leave
it off in regulated environments.
One thing to know for the KQL checks and dashboards below: terminal CLI sessions
emit under the service name github-copilot, not copilot-chat, and appear as
independent root traces. Filter on cloud_RoleName == "github-copilot" when you
query CLI activity.
Claude Code
Claude Code reads telemetry config from environment variables. Add this to its
settings.json:
{
"env": {
"CLAUDE_CODE_ENABLE_TELEMETRY": "1",
"OTEL_METRICS_EXPORTER": "otlp",
"OTEL_LOGS_EXPORTER": "otlp",
"OTEL_EXPORTER_OTLP_PROTOCOL": "http/protobuf",
"OTEL_EXPORTER_OTLP_ENDPOINT": "http://localhost:4318",
"OTEL_LOG_USER_PROMPTS": "1",
"OTEL_LOG_TOOL_DETAILS": "1",
"OTEL_METRICS_INCLUDE_VERSION": "true"
}
}
OTEL_LOG_USER_PROMPTS and OTEL_LOG_TOOL_DETAILS enrich the per-user and
tool-usage panels. Drop them in regulated environments where prompt text may
include sensitive content.
OpenClaw
The OpenClaw gateway publishes OpenTelemetry through its telemetry config:
{
"enabled": true,
"endpoint": "http://localhost:4318",
"protocol": "http/protobuf",
"serviceName": "openclaw-gateway",
"traces": true,
"metrics": true,
"logs": true,
"sampleRate": 1,
"flushIntervalMs": 5000
}
serviceName must be exactly openclaw-gateway, because the dashboard filters
on cloud_RoleName == "openclaw-gateway".
Step 3: Verify telemetry is landing
Before importing dashboards, confirm the pipeline is healthy. In the Azure portal, open the Application Insights resource and run these KQL checks against Logs:
// GitHub Copilot
dependencies
| where timestamp > ago(1h)
| where cloud_RoleName == "copilot-chat"
| take 50
// GitHub Copilot CLI
dependencies
| where timestamp > ago(1h)
| where cloud_RoleName == "github-copilot"
| take 50
// Claude Code
customMetrics
| where timestamp > ago(1h)
| where name startswith "claude_code"
| take 50
// OpenClaw
dependencies
| where timestamp > ago(1h)
| where cloud_RoleName == "openclaw-gateway"
| take 50
If nothing comes back, the usual suspects are an incorrect connection string, blocked egress to the Application Insights ingestion endpoint, or a firewalled collector port.
Step 4: Import the dashboards
Three dashboards are published and version-controlled, each with its own import flow and variable reference:
- GitHub Copilot — operations, tokens, sessions, tool calls, per-model latency.
- Claude Code — cost, sessions, daily token trends, model breakdown, top tools.
- OpenClaw — messages, response time percentiles, cache reads, stuck sessions.
All three require Grafana 11.6 or later and an Azure Monitor data source bound to the subscription holding the Application Insights resource. The same dashboards are also available natively in the Azure portal as Azure Monitor dashboards with Grafana, with no separate Grafana instance to run.
Operational considerations
A few things worth deciding up front:
- Sampling. A 100% sample rate is fine for a small pilot but will dominate Application Insights cost at scale. Drop the sample rate or filter low-value spans in the collector before you onboard a large team.
- Prompt capture.
captureContent,OTEL_LOG_USER_PROMPTS, and similar switches store raw prompts in Application Insights. That is great for auditability and terrible for data classification. Decide per environment. - Multi-tenant collectors. A single shared collector works, but if you need per-team cost attribution, tag at the agent or run separate collectors that export to separate Application Insights resources.
- Alerting. Add Application Insights alert rules (or Grafana alerts) on daily cost thresholds, sustained API error rates, and stuck-session counts. These are the signals that will save you from a surprise invoice.
Where this leaves you
The pieces here are not new individually — OpenTelemetry, Application Insights, and Grafana have been around for years. What changed is that the dashboards, filters, and KQL queries for coding agents are now packaged and supported as a documented path. That cuts the time from “we should monitor this” to “we have a single pane of glass” from weeks of dashboard design to an afternoon of wiring.
If you already run Application Insights for other workloads, this slots straight into the same workspace. If you are starting fresh, this is a reasonable excuse to stand up Azure Managed Grafana and put it in front of the rest of your estate too.
